Brushless Direct Current (BLDC) motors have become a cornerstone in modern electromechanical systems due to their efficiency, reliability, and precision control. At the heart of these motors lies the rotor, a critical component that directly influences performance characteristics such as torque, speed, and thermal efficiency. Understanding the materials and magnet arrangements used in BLDC Rotor design is essential for engineers aiming to optimize motor performance for specific applications. This comprehensive analysis delves into the intricacies of BLDC rotor materials, magnet configurations, and their impact on overall motor performance.
BLDC motors, known for their high efficiency and excellent torque characteristics, have revolutionized the way we approach motor design and application. They operate on the principle of replacing the mechanical commutation system found in traditional DC motors with electronic commutation, using solid-state devices for controlling current flow. This eliminates the need for brushes, reducing maintenance and increasing longevity. The rotor, embedded with permanent magnets, interacts with the stator's electromagnetic fields, causing rotation. The design and material selection of the rotor are crucial for achieving desired performance metrics.
The selection of materials for BLDC rotors significantly affects the motor's magnetic properties, thermal behavior, and mechanical strength. Two primary components in the rotor—the permanent magnets and the core material—require careful consideration.
Permanent magnets provide the essential magnetic flux in BLDC motors. The choice of magnet material impacts the motor's torque density, efficiency, and operating temperature range. The most commonly used materials are Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), and Ferrite magnets.
NdFeB magnets are renowned for their high magnetic energy density, making them ideal for compact motor designs requiring high torque. They offer excellent performance in applications where space is limited. However, they have a lower Curie temperature, approximately 310°C, and can suffer from demagnetization at elevated temperatures. To mitigate this, NdFeB magnets often require protective coatings to prevent oxidation and maintain performance.
SmCo magnets provide a balance between magnetic strength and thermal stability. With a higher Curie temperature of up to 725°C, they are suitable for high-temperature applications where NdFeB magnets would falter. SmCo magnets are more resistant to corrosion and do not require additional coatings. Their drawback lies in the higher cost and brittleness, necessitating careful handling during manufacturing.
Ferrite magnets are an economical choice for BLDC rotors. While they have lower magnetic energy compared to rare-earth magnets, they offer good thermal stability and corrosion resistance. Ferrite magnets are suitable for applications where cost is a significant factor, and the performance requirements are moderate.
The rotor core supports the permanent magnets and channels the magnetic flux. It is typically made from ferromagnetic materials that exhibit low magnetic losses. Common materials include electrical steel, also known as silicon steel, and Soft Magnetic Composites (SMCs).

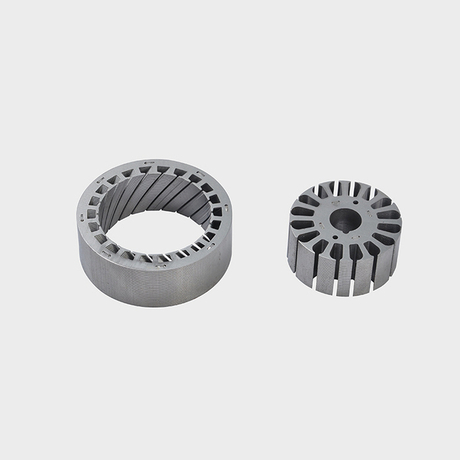

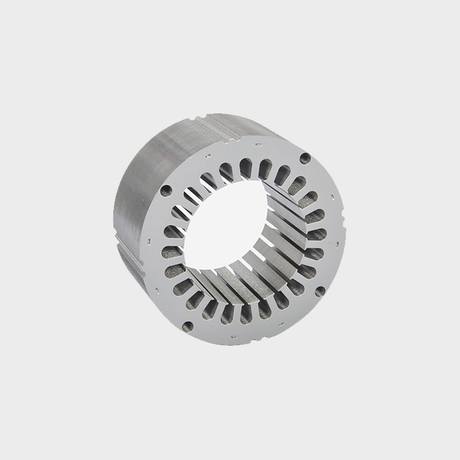

Electrical steel is widely used due to its excellent magnetic properties and ease of fabrication. It contains silicon, which increases electrical resistivity and reduces eddy current losses. Laminated electrical steel sheets are stacked to form the rotor core, minimizing eddy currents and associated losses. The thickness of these laminations is crucial; thinner laminations reduce losses but increase manufacturing complexity and cost.
SMCs are powder metallurgy products consisting of iron powder particles coated with an insulating layer. They allow for three-dimensional magnetic flux paths, providing design flexibility. SMCs offer reduced eddy current losses and are suitable for high-frequency applications. However, they typically have lower magnetic permeability compared to electrical steel, which can impact motor performance.
The configuration of magnets on the rotor affects the magnetic flux distribution, torque production, and overall efficiency. Several magnet arrangements are employed in BLDC rotor design, each with unique characteristics.
In SPM configurations, magnets are attached to the rotor surface, facing outward toward the stator. This arrangement simplifies manufacturing and allows for high flux densities at the air gap. However, the mechanical integrity of the magnets must be ensured, often requiring protective sleeves or bands to prevent magnet detachment at high rotational speeds.
IPM designs embed magnets within the rotor core. This configuration protects the magnets from mechanical stresses and enables the rotor to withstand higher speeds. IPM rotors can produce reluctance torque in addition to magnet torque, enhancing overall performance. The complexity of manufacturing IPM rotors is higher due to precise machining requirements.
The Halbach Array is a sophisticated magnet arrangement that focuses the magnetic field on one side while canceling it on the other. In BLDC rotors, this results in a stronger air gap flux without increasing the amount of magnetic material. Halbach Arrays provide high torque density and efficient use of magnet material but are complex and expensive to manufacture due to precise magnet orientation requirements.
The materials and magnet arrangements used in BLDC rotors have direct implications for motor performance. Factors such as efficiency, torque production, speed capabilities, and thermal behavior are influenced by these design choices.
High-energy permanent magnets like NdFeB increase torque density, allowing for compact motor designs. The magnet arrangement also affects torque production; IPM rotors can utilize reluctance torque, enhancing overall output. SPM rotors provide strong magnet torque but lack the additional reluctance torque component.
Efficiency is impacted by magnetic losses in the rotor materials and the effectiveness of the magnetic circuit. Using high-permeability materials for the rotor core reduces hysteresis and eddy current losses. Magnet arrangements that provide uniform flux distribution, such as Halbach Arrays, improve efficiency by reducing harmonic content in the back-EMF waveform.
Thermal behavior is critical, especially in applications involving high currents or ambient temperatures. SmCo magnets offer better thermal stability compared to NdFeB magnets. Rotor designs that facilitate heat dissipation, such as those with embedded magnets, help maintain magnet integrity and performance over time.
The rotor's mechanical strength must accommodate centrifugal forces at high speeds. IPM rotors are advantageous for high-speed applications due to the secure placement of magnets within the core. SPM rotors require additional retention mechanisms, which may add to the rotor's inertia and affect dynamic response.
Designing a BLDC rotor involves balancing multiple factors, including performance requirements, cost, manufacturability, and application-specific considerations.
While rare-earth magnets offer superior performance, their high cost can be prohibitive. Ferrite magnets present a cost-effective alternative but at the expense of reduced torque density. Material selection must align with the application's performance needs and budget constraints.
Complex magnet arrangements like Halbach Arrays and IPM configurations require precise manufacturing techniques. This increases production time and costs. Design simplicity can be beneficial for large-scale production, where SPM rotors might be more feasible.
Different applications prioritize different performance aspects. For instance, aerospace applications may prioritize weight reduction and high efficiency, favoring NdFeB magnets and advanced magnet arrangements. Industrial applications with harsh environments might prioritize thermal stability and robustness, leaning towards SmCo magnets and IPM designs.
Recent research and development efforts focus on improving BLDC rotor performance while reducing costs. Innovations include developing new magnetic materials with reduced reliance on rare-earth elements, such as ferrite-nanocomposite magnets, and exploring additive manufacturing techniques for rotor fabrication.
These magnets aim to combine the low cost of ferrite materials with enhanced magnetic properties through nanostructuring. While still in the research phase, they hold promise for cost-effective, high-performance BLDC rotors.
Additive manufacturing, or 3D printing, allows for complex rotor geometries that are difficult to achieve with traditional methods. This technology can produce optimized magnet arrangements and incorporate cooling channels directly into the rotor design, enhancing thermal management.
Examining real-world applications provides insight into how rotor material and design choices impact performance.
In EVs, BLDC motors require high torque density and efficiency to maximize range and performance. Manufacturers often opt for NdFeB magnets with IPM configurations to achieve these goals. The Toyota Prius, for instance, utilizes an IPM BLDC motor to capitalize on both magnet and reluctance torque.
Aerospace requires motors that can operate reliably under extreme conditions. SmCo magnets are preferred for their thermal stability and resistance to radiation. Rotors with embedded magnets and robust core materials ensure mechanical integrity at high altitudes and temperatures.
Cost-sensitive industrial applications may utilize ferrite magnets with SPM rotor designs. While torque density is lower, these motors provide sufficient performance for applications like conveyor belts and fans, where space constraints are less critical.
The environmental impact of material selection is increasingly important. Rare-earth mining has significant ecological consequences, prompting a search for alternatives.
Efforts are underway to design BLDC rotors that minimize or eliminate rare-earth magnets without severely compromising performance. Advanced ferrite magnets and novel motor topologies are part of this initiative.
Designing motors with end-of-life recyclability in mind contributes to sustainability. Selecting materials that can be efficiently reclaimed and separating components for recycling are essential practices.
The design of the BLDC Rotor is a complex task that balances material properties, magnet arrangements, performance requirements, and cost considerations. By understanding the impact of different materials and configurations, engineers can tailor BLDC motors to meet the specific demands of an application. Advances in material science and manufacturing technologies continue to expand the possibilities for BLDC rotor design, contributing to more efficient, reliable, and sustainable motor systems.
1. Why are rare-earth magnets commonly used in BLDC rotors?
Rare-earth magnets like NdFeB and SmCo offer high magnetic energy densities, enabling compact motor designs with high torque outputs. They enhance the performance of BLDC rotors by providing strong magnetic fields, which are essential for efficient torque production.
2. How does the magnet arrangement affect the performance of a BLDC motor?
Magnet arrangement determines the flux distribution within the motor, impacting torque production, efficiency, and speed capabilities. Configurations like SPM and IPM offer different advantages; for instance, IPM rotors can utilize both magnet and reluctance torque, enhancing performance.
3. What are the benefits of using Soft Magnetic Composites in rotor cores?
SMCs allow for three-dimensional flux paths and reduce eddy current losses due to their electrically insulating properties. They offer design flexibility and are advantageous in high-frequency applications. However, they may have lower magnetic permeability compared to traditional electrical steels.
4. Why might an engineer choose ferrite magnets over rare-earth magnets?
Ferrite magnets are significantly less expensive than rare-earth magnets and offer good thermal and corrosion resistance. They are suitable for applications where high torque density is not critical, and cost is a primary concern.
5. What are the challenges associated with manufacturing Halbach Arrays for BLDC rotors?
Halbach Arrays require precise magnet orientation to achieve the desired flux focusing effect. This increases manufacturing complexity and cost. The assembly process must ensure exact positioning and adhesion of magnets, which can be challenging at scale.
6. How does thermal management impact BLDC rotor design?
Thermal management is crucial for maintaining magnet integrity and overall motor performance. Elevated temperatures can cause demagnetization, especially in NdFeB magnets. Rotor designs that facilitate heat dissipation, and selecting magnets with higher thermal stability, mitigate these risks.
7. What future developments are expected in BLDC rotor materials?
Future developments focus on reducing dependency on rare-earth materials through alternative magnets like ferrite-nanocomposites, and enhancing manufacturing techniques such as additive manufacturing. These advancements aim to improve performance while addressing cost and sustainability concerns.
