The motor core is an essential component in electric motor design, playing a pivotal role in the motor's overall performance. Its ability to generate and transfer magnetic fields influences the motor's efficiency, power output, and stability. In this article, we will explore the applications of motor cores in various types of electric motors, their material requirements, and the specific advantages that these motor cores bring to different motor designs.

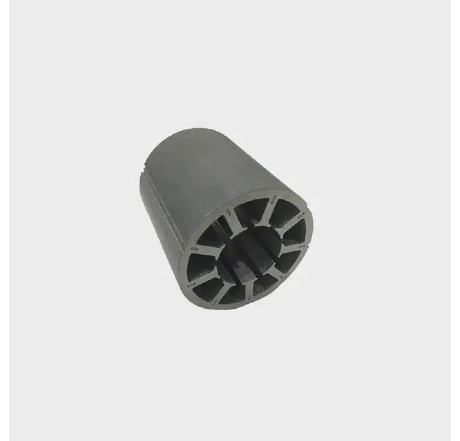

The motor core is the part of an electric motor that contains the magnetic material through which the magnetic flux generated by the stator flows. It is crucial for converting electrical energy into mechanical energy in electric motors. The motor core plays a significant role in controlling efficiency, torque, power output, and noise reduction.
The material and design of the motor core are vital for the performance of the motor. Choosing the right material improves:
Efficiency: Reduces energy losses due to improved magnetic properties.
Power Output: Enhances the motor's ability to handle more power.
Noise and Vibration: Certain materials reduce noise and vibration during operation.
Durability: Increases the operational life of the motor.
Different types of electric motors require different motor cores based on their design and operational needs. Understanding how motor cores work in these different applications can help in selecting the right motor for specific tasks.
AC motors are widely used in various industrial and commercial applications. The motor core design plays a critical role in improving efficiency and ensuring stable operation.
Induction motors are the most commonly used type of AC motors due to their simplicity and robustness. The motor core in an induction motor helps in the generation of the magnetic field needed for induction.
The motor core is typically made of silicon steel, which provides high magnetic permeability.
It helps reduce energy losses caused by eddy currents and hysteresis, improving overall efficiency.
Silicon steel is the most commonly used material for induction motor cores because of its ability to conduct magnetic flux efficiently while minimizing energy loss.
Industrial Equipment: Pumps, fans, compressors, and conveyor systems.
Home Appliances: Air conditioners, washing machines, and refrigerators.
Synchronous motors are another type of AC motor, used in applications where precise speed control is required.
The core in a synchronous motor is often constructed with laminated sheets of silicon steel to minimize eddy current losses.
Unlike induction motors, synchronous motors require more precise control of the magnetic field, so the motor core must be designed to support this functionality.
High-quality silicon steel is used to ensure the motor core can handle high-frequency changes in magnetic flux, which is critical for synchronous operation.
Power Plants: Used in large-scale generators to generate electrical power.
Robotics: Synchronous motors are used for precision control in robotic arms and automated systems.
DC motors are known for their ability to provide smooth and adjustable speed control. The motor core design in DC motors varies depending on whether the motor is brushed or brushless.
Brushed DC motors use a mechanical commutator to reverse current direction in the motor windings, allowing the rotor to continue turning.
The motor core in brushed DC motors is typically made of iron or soft magnetic materials.
This type of motor core helps generate the magnetic field that drives the rotor's motion.
Iron cores are favored due to their cost-effectiveness, good magnetic properties, and ability to handle high currents.
Power Tools: Drills, saws, and other handheld devices.
Automotive Applications: Used in fans, wipers, and other components.
Brushless DC motors are more efficient than brushed motors because they eliminate the need for mechanical commutation by using electronic controllers to manage the magnetic field.
The motor core in brushless DC motors typically includes laminated steel or rare earth magnets.
The core in these motors needs to support high-speed operation while minimizing energy losses.
Rare earth magnets (such as Neodymium) are used to generate stronger magnetic fields in the core.
Laminated steel cores help reduce eddy current losses and improve efficiency.
Electric Vehicles (EVs): Brushless motors are commonly used in electric cars for their high efficiency.
Drones and Robotics: Used in high-performance applications requiring precise speed control.
Stepper motors are used in applications requiring precise control of angular position. The motor core design in stepper motors is key to ensuring accurate movement.
The motor core in a stepper motor is designed to allow precise control of the rotor’s position as the stator generates a rotating magnetic field.
Laminated steel or soft iron is typically used in stepper motor cores due to its magnetic properties and low hysteresis losses.
Stepper motors require highly efficient motor cores to minimize power loss during each step of the rotor’s movement.
The core design must also help reduce any backlash or vibration that may occur during stepping.
CNC Machines: Used for precision movement in manufacturing.
Printers: Stepper motors are often used in inkjet and laser printers.
Robotics: Used for precise and repeatable movements in robotic systems.
Permanent magnet motors are known for their high efficiency, especially in applications where compact size and reduced weight are critical.
Permanent magnet motors use a permanent magnetic field rather than relying on electromagnets, which makes them more efficient in certain applications.
The motor core is typically made of laminated steel or composite materials to ensure minimal energy losses.
The core design in permanent magnet motors is key to minimizing energy loss and enhancing power output.
Rare earth magnets (such as Neodymium) are commonly used to improve magnetic field strength in the motor core.
Electric Vehicles (EVs): Used for efficient propulsion systems.
Wind Turbines: Used in renewable energy applications for generating electricity.
Renewable Energy Systems: In both wind and solar applications.
Universal motors can operate on both AC and DC power, making them versatile in many applications.
The motor core must be designed to work efficiently with both AC and DC currents.
Laminated iron cores are commonly used in universal motors to reduce losses and improve overall performance.
The core must be strong enough to handle high-speed operations while maintaining low noise levels.
Household Appliances: Vacuum cleaners, blenders, and food processors.
Power Tools: Drill presses, saws, and grinders.
In the growing electric vehicle industry, motor core technology plays a pivotal role in optimizing the performance of EV motors. High-efficiency cores made from rare earth magnets are being used to meet the performance demands of electric vehicles while minimizing energy loss.
In wind and solar applications, motor cores must be capable of handling high-power outputs while being resistant to harsh environmental conditions. Silicon steel and permanent magnets are often used in wind turbine motors and solar power generation systems to convert mechanical energy into electricity efficiently.
Robotics requires motors with precise control over torque, speed, and positioning. Stepper motors and brushless DC motors with highly optimized motor cores are used in various robotic systems for smooth and accurate movement.
Selecting the right material for a motor core involves balancing magnetic properties, cost, and operational efficiency. High-quality materials like silicon steel and rare earth magnets are often chosen for their superior performance, but they come at a higher cost.
The motor core design must be optimized for each specific motor type, considering factors such as energy efficiency, heat dissipation, and vibration control.
In many industrial and commercial applications, there is a constant trade-off between material cost and performance. While high-performance materials offer better efficiency, they may not always be cost-effective for mass-produced or low-power applications.
The motor core is central to the design and performance of electric motors, influencing factors such as efficiency, power output, and lifespan. Each motor type—whether AC motors, DC motors, stepper motors, or permanent magnet motors—requires a carefully designed core to
ensure optimal performance.
Selecting the right motor core material is essential for achieving high efficiency, reducing energy losses, and ensuring motor longevity. As technology evolves, advancements in motor core design and materials will continue to drive innovations in industries ranging from electric vehicles to renewable energy and robotics.
