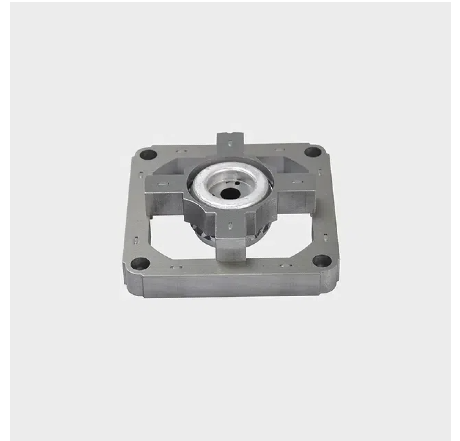

The motor core is a key component in electric motors, playing a crucial role in converting electrical energy into mechanical energy. Its function is primarily based on electromagnetic induction, which allows the motor to generate the necessary torque to drive machinery. In this article, we will explore how the motor core works through electromagnetic induction, how its design impacts the motor's efficiency, power, and noise, and the relationship between the motor core and the flow of electric current.
Electric motors rely on electromagnetic induction, a fundamental principle of physics, to generate the necessary force to drive their rotors. The motor core is a critical component in this process, as it serves to conduct and direct magnetic flux, which is essential for motor operation.
Electromagnetic induction refers to the process where a changing magnetic field induces an electric current in a conductor. In the context of an electric motor, the motor core is made of a magnetic material, often silicon steel or iron, that helps concentrate and direct the magnetic fields generated by the stator (the stationary part of the motor). As current flows through the stator windings, it produces a magnetic field that interacts with the motor core. This interaction creates a force that drives the rotor (the rotating part of the motor), thus converting electrical energy into mechanical energy.
The motor core is typically made from high-quality magnetic materials such as silicon steel, which have high permeability, meaning they can easily conduct magnetic flux. The core provides a path for the magnetic flux to flow from the stator to the rotor, which generates the rotational force required to turn the rotor. This process is a direct application of Faraday's Law of Induction, where the interaction of magnetic fields and conductors creates an electric current that powers the motor.
The motor core's ability to efficiently conduct magnetic flux directly impacts the motor’s performance. A high-quality motor core reduces energy losses due to eddy currents, thus improving the efficiency and reducing the heat generated during operation.
The design of the motor core is one of the most critical factors in determining the motor's performance, including its efficiency, power output, and noise levels. Below, we will explore how the motor core's design plays a role in each of these areas.
The efficiency of an electric motor is influenced by how effectively the motor core can transfer energy from the stator to the rotor. The design of the motor core, including the type of material used and the thickness of the laminations, has a direct effect on how efficiently the motor operates.
Design Factor | Impact on Efficiency |
Material Type | Materials like silicon steel have high magnetic permeability, reducing energy losses. |
Laminate Thickness | Thinner laminations reduce eddy current losses, which helps improve motor efficiency. |
Core Shape & Geometry | Optimized core shapes improve magnetic flux distribution, leading to better energy conversion. |
High-quality materials such as silicon steel are often used in motor cores because they offer low hysteresis loss (energy lost during the magnetization process) and low eddy current losses (unwanted currents induced in the core). Additionally, core laminations (thin sheets of magnetic material) help reduce energy losses by limiting the flow of eddy currents.
The power output of an electric motor is directly related to the magnetic flux density and the force generated by the motor's core. A well-designed motor core can increase the motor's torque production and, consequently, its power output.
Motor cores that are designed with higher magnetic saturation and greater cross-sectional area allow the motor to handle more current and produce higher power output. By increasing the core's magnetic permeability and optimizing the shape and size of the core, motor manufacturers can improve the efficiency with which the motor converts electrical energy into mechanical energy.
Another crucial factor impacted by the motor core's design is noise generation. Electric motors inherently produce noise due to the interaction between the magnetic fields and the rotor. However, the amount of noise generated can be minimized through a carefully designed motor core.
Factors such as the material choice, lamination thickness, and core assembly can reduce the vibration and noise levels in the motor. For example, cores with finer laminations reduce the likelihood of vibration caused by eddy currents, leading to quieter motor operation. Additionally, using low-noise materials and improving the assembly processes help further reduce the acoustic footprint of the motor.、
The motor core and electric current are intricately connected. The electric current flowing through the stator windings creates the magnetic field that interacts with the motor core. The magnetic field generated by the stator induces a force on the rotor, which drives the motor. Therefore, understanding how the motor core interacts with the electric current is critical in ensuring efficient motor operation.
When current flows through the stator windings, it creates a time-varying magnetic field. This magnetic field induces an electric current within the motor core through Faraday's Law of Induction. The strength and direction of the current determine the strength and direction of the magnetic field generated by the stator. The motor core must be designed to respond to changes in the magnetic field efficiently, ensuring that the energy conversion process remains smooth and effective.
Eddy currents are loops of electric current induced in the motor core due to the changing magnetic fields. While these currents are an inevitable byproduct of electromagnetic induction, they result in energy loss in the form of heat. To minimize the negative impact of eddy currents, motor cores are often laminated to restrict the flow of these currents. Additionally, high-quality materials with low electrical conductivity are used to reduce eddy current losses and enhance motor efficiency.
Another important aspect of the motor core's interaction with electric current is magnetic saturation. As the electric current increases, the motor core reaches a point where it can no longer efficiently conduct magnetic flux. This point is known as magnetic saturation. At saturation, any increase in the current will no longer result in a proportional increase in magnetic flux, which limits the power output of the motor.
To avoid saturation, motor designers carefully select core materials with high magnetic permeability and design the core's dimensions to handle the expected levels of current. Proper design helps ensure that the motor operates at optimal flux levels without reaching saturation.
The motor core is a vital component of an electric motor's design, directly influencing its performance, efficiency, power output, and noise levels. The motor core's ability to generate and transfer magnetic fields through electromagnetic induction plays a key role in minimizing energy losses and ensuring smoother, quieter motor operation. Key factors like eddy currents, core saturation, and material choice all impact motor efficiency, making it essential to choose the right core design and materials.
A well-designed motor core can significantly enhance the effectiveness of an electric motor, improving its longevity and overall performance. By understanding the inner workings of the motor core, you can make informed decisions on selecting the best materials and designs for your specific motor applications. This knowledge is essential for optimizing motor performance across various industries, from industrial machinery to consumer electronics.
