The motor core is a critical component in the design and operation of electric motors. It not only supports the magnetic field necessary for motor operation but also significantly impacts efficiency, power output, and overall performance. One of the most crucial decisions when designing or selecting a motor is the choice of motor core material. Different materials offer varying levels of performance, efficiency, and cost, making material selection essential for optimizing motor functionality in various applications.
This article will explore the most commonly used materials for motor cores, their advantages, and how to select the appropriate material for specific motor applications.

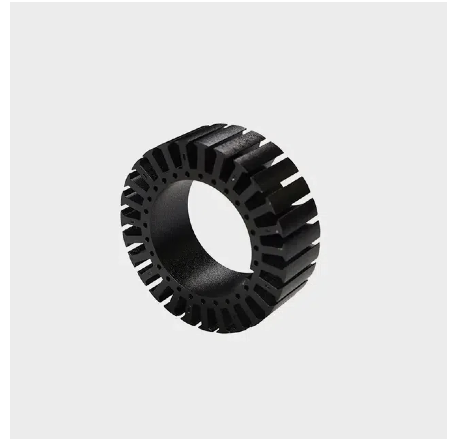

The motor core is responsible for generating and transferring the magnetic fields that drive the rotor in an electric motor. The core’s material plays a vital role in determining how efficiently the motor operates. High-quality materials ensure that the motor performs optimally, with minimal energy loss and extended lifespan. Whether used in industrial machines, electric vehicles (EVs), home appliances, or any other applications, choosing the right motor core material is crucial for maximizing efficiency and power output.
Motor core materials directly affect:
Efficiency: The right material reduces energy losses, improving overall efficiency.
Power Output: Materials with higher magnetic permeability can handle greater power loads.
Durability: High-quality materials ensure longer operational life.
Noise and Vibration: Some materials minimize the noise and vibration associated with motor operation.
By understanding the different types of materials available, engineers and manufacturers can make informed decisions to improve motor performance for specific applications.
There are several materials used to construct motor cores, each offering different advantages depending on the motor’s requirements. Below, we discuss the most commonly used motor core materials.
Silicon steel, often referred to as electrical steel, is one of the most widely used materials in motor cores. It is specifically designed for use in electrical applications due to its high magnetic permeability and low energy loss.
High magnetic permeability: Allows easy flow of magnetic fields.
Low core loss: Reduces energy losses due to eddy currents and hysteresis.
Durability: Can handle high power loads and continues to operate efficiently for long periods.
Found in most industrial electric motors, transformers, and electric generators.
Iron cores are traditional materials used in electric motors, offering good conductivity and strength. They have been used for many decades in a wide range of motor applications.
Good electrical conductivity: Ideal for handling larger power outputs.
Strength: Provides stability and robustness in heavy-duty applications.
Relatively low cost: More affordable than some premium materials.
Industrial machines, large power motors, and heavy-duty generators.
Ferrite materials are ceramic compounds made from iron oxide combined with other metals. These materials are often used in low-cost and low-power applications.
Low cost: One of the most affordable motor core materials.
Stable performance: Performs well at higher frequencies and in low-power applications.
Non-conductive: Unlike metals, ferrites do not conduct electricity, reducing eddy current losses.
Small motors, sensors, and consumer-grade devices.
Rare earth magnets, such as neodymium (NdFeB), offer high magnetic strength in compact sizes. They are becoming increasingly popular for high-performance motors, especially those in electric vehicles (EVs) and renewable energy applications.
High magnetic field strength: Provides higher power density in a smaller size.
Compact and lightweight: Ideal for high-performance, space-constrained applications.
Energy efficiency: Reduces energy consumption while delivering higher output.
Electric vehicles, wind turbines, and high-performance industrial motors.
Aluminum and copper cores are commonly used in small motors and devices that require lightweight materials. Though not as efficient as other materials, they are cost-effective for low-power applications.
Lightweight: Suitable for applications where weight is a critical factor.
Cost-effective: More affordable compared to high-performance materials like rare earth magnets.
Good thermal conductivity: Helps in heat dissipation.
Low-power motors, consumer electronics, and home appliances.
Understanding the advantages of each motor core material is essential when selecting the appropriate material for a motor's application.
Advantage | Impact |
High Efficiency | Reduces energy losses, improving motor performance. |
Durability | Offers long-term reliability in demanding environments. |
Low Losses | Low hysteresis and eddy current losses. |
Silicon steel is the best choice for motors that require high efficiency and long operational life. It is most commonly used in motors for industrial applications and power generation.
Advantage | Impact |
Power Handling | Can handle large power outputs and heavy loads. |
Cost-Effective | More affordable for larger motors and industrial applications. |
Stability | Provides a solid foundation for motor operation. |
Iron cores are ideal for large, high-power motors, where the motor’s durability and cost-effectiveness are top priorities.
Advantage | Impact |
Low Cost | Great for budget-friendly applications. |
Stable Under Frequency | Performs well at high frequencies, reducing energy loss. |
Non-Conductive | Reduces eddy current losses for better efficiency. |
Ferrite materials are commonly used in low-cost and low-power applications, where performance is less critical but affordability is essential.
Advantage | Impact |
High Power Density | Higher power output in a compact design. |
Energy Efficient | Reduces energy consumption while improving performance. |
Compact | Suitable for space-constrained applications. |
Rare earth magnets are ideal for high-performance motors, such as those used in electric vehicles and renewable energy systems, where space, weight, and efficiency are essential.
Advantage | Impact |
Lightweight | Perfect for small motors or portable applications. |
Cost-Effective | Affordable for mass production of consumer products. |
Good Heat Dissipation | Helps in thermal management, preventing overheating. |
Aluminum and copper cores are commonly used in consumer electronics and other lightweight applications where power is less critical.
When selecting the best motor core material, it's important to assess the application’s specific needs. Here are a few things to consider:
Power Requirements: For high-power applications, materials like silicon steel or iron are ideal due to their strength and durability.
Efficiency: If energy efficiency is a priority, rare earth magnets and silicon steel offer the best performance.
Cost Constraints: For budget-conscious projects, ferrite and aluminum are cost-effective choices.
Space and Weight: In compact and lightweight applications, rare earth magnets and aluminum are optimal.
Motor efficiency is crucial, especially in industries where energy consumption is a concern. In these cases, silicon steel or rare earth magnets are typically the best options because of their low energy losses and high magnetic efficiency.
If cost is a major factor, materials like iron cores or ferrite materials offer a good balance of performance and affordability. These materials are commonly used in large-scale industrial applications and low-cost consumer products.
Choosing the right motor core material can significantly improve the efficiency of the motor by minimizing energy losses, especially in high-performance and industrial applications.
The material’s ability to handle high magnetic flux affects the motor’s torque and power output. Materials with high permeability, like silicon steel and rare earth magnets, allow for better energy conversion and stronger torque production.
Materials with good thermal conductivity help dissipate heat, preventing the motor from overheating. Copper and aluminum are especially effective in managing heat, ensuring that motors operate within safe temperature ranges.
Certain materials, such as silicon steel, can reduce the noise and vibration levels generated by the motor. Thicker laminations and optimized core design help minimize the unwanted acoustic footprint.
Advancements in materials science have led to new innovations, such as composite motor cores and high-performance alloys, which offer superior strength and efficiency. These new materials promise to make motors even more efficient and durable.
The push for sustainable and recyclable motor core materials is growing. Many manufacturers are exploring eco-friendly alternatives that minimize the environmental impact of motor production.
As the demand for high-performance motors in sectors like electric vehicles and renewable energy grows, the development of more advanced motor core materials will play a crucial role in achieving greater efficiency and power output.
The material selection for the motor core is a key factor in determining the performance, efficiency, and durability of an electric motor. By understanding the different types of motor core materials and their unique advantages, manufacturers and engineers can optimize motor performance for specific applications. Whether you need a high-power motor for industrial use or a compact, energy-efficient motor for consumer electronics, selecting the right motor core material is essential to achieving the desired results.
