BLDC motors power everything from drones to electric cars.But without the right stator core, performance drops fast.This article shows why stator core design matters.You’ll learn how lamination, materials, and structure affect motor strength, heat, and efficiency.
Understanding a BLDC motor begins with its structure. Let’s break it down simply.
A stator is the stationary part of the motor. It holds the windings and creates the magnetic field.
Its design affects torque, size, and cooling efficiency. The rotor sits inside or outside the stator.
It rotates when the magnetic field from the stator interacts with permanent magnets on the rotor.Also included are:
● Windings: copper coils that carry current
● Bearings: ensure smooth rotor rotation
● Casing: protects inner components
● Control electronics: control switching and speed
All these work together to create precise, smooth, brushless rotation.
When current flows through windings, it creates a magnetic field.
This field travels through the stator core, which channels it efficiently toward the rotor.
● Current → Magnetic field → Rotor movement
● A well-designed stator core means less energy loss, less heat, and more torque.
The core design controls how strong and clean the field is, reducing ripple and improving performance.

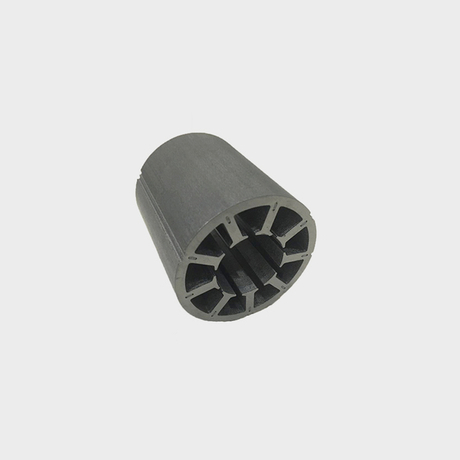

Let’s focus on the motor’s magnetic heart: the stator core.
The stator core has three critical jobs:
1. Support the windings mechanically
2. Form the magnetic path for flux transfer
3. Impact motor performance—size, noise, and power
A poor core design can limit current handling, reduce torque, or cause overheating.
Its geometry, material, and lamination thickness affect:
● Eddy current losses
● Hysteresis loss
● Heat dissipation and weight
● Acoustic noise and efficiency
A small design change could improve performance by 20% or more.
Eddy currents cause energy loss and heat inside solid metal cores.
By laminating the stator—stacking thin, insulated sheets—we block these unwanted currents.Benefits:
● Lower core losses
● Better flux control
● Cooler motor operation
Manufacturers use:
● Electrical steel: standard choice, good performance
● Silicon steel: better electrical resistance
● Amorphous alloy: low loss, high cost
● Cobalt alloys: used in high-frequency applications
Material | Cost | Saturation | Eddy Loss Resistance |
Electrical Steel | Low | Medium | Medium |
Silicon Steel | Medium | High | High |
Amorphous Alloy | High | Low | Very High |
Cobalt Alloy | Very High | Very High | High |
The method depends on tolerance, cost, and production volume.
Technique | Precision | Cost | Best Use Case |
Laser Cutting | Very High | Medium | Custom shapes, R&D, low-volume |
Punching | High | Low | High-speed mass production |
Wire EDM | Ultra High | High | Tight tolerances, prototype work |
Each sheet is insulated and stacked, then bonded.
More layers = better suppression of unwanted currents.
Eddy currents create heat, wasting energy.
● Thin laminations (0.1–0.5 mm) with insulation help break the circular paths these currents follow.Thinner sheets = Less loss
● Also helps keep the core cooler and more efficient
Each time a motor reverses magnetic polarity, some energy is lost.
● Materials with low coercivity reduce this loss
● Heat treatment (like annealing) improves magnetic alignment
● Smooth cycling ensures stable operation and higher life
High flux density improves torque.
High permeability allows more field flow with less effort.
Designers aim to:
● Avoid saturation (where more current doesn’t help)
● Use materials that balance cost and performance
Slot count, shape, and size influence:
● How much copper fits inside
● How evenly the field is distributed
● How well it cools down under load
Slot Feature | Effect |
Deep/Narrow | Better torque, harder to wind |
Wide Shallow | Easy to wind, more heat |
Skewed Slots | Reduce cogging, improve smoothness |
More compact cores:
● Save space and weight
● Heat faster, harder to cool
Larger cores:
● Offer better cooling
● Take more material and cost
Applications:
● Drones → compact, light cores
● EVs → large, high-output stators
● Medical → small, ultra-precise geometry
Manufacturing tolerances affect vibration and balance.
Use:
● CNC cutting
● Automated stacking
● Laser welding
Small imbalances can cause noise or damage bearings.
After stacking:
● Annealing reduces stress from cutting
● Coatings resist corrosion, especially in medical and marine uses
Special paints may also reduce eddy losses further.
Feature | Laminated Core | Solid Core |
Losses | Low | High |
Cost | Higher (per part) | Lower |
Heat Handling | Better | Poor |
Applications | All efficient motors | Legacy or simple uses |
Use solid cores only in very low-speed, low-frequency devices.
Use gear-shaped or toothed laminations for precise step control.
Need:
● Tight slot tolerances
● High fill factor
● Dense, balanced lamination stacks
Focus is on torque ripple reduction and real-time feedback.
Caused by:
● Overload
● Poor ventilation
● Wrong winding setup
Fixes:
● Add cooling vents
● Use heat pipes or better core materials
Check for:
● Worn insulation
● Cheap or thick laminations
Fix:
● Upgrade to thinner laminations
● Choose higher-grade steel
Causes:
● Handling stress
● Vibration
● Loose fitting
Solutions:
● Use reinforced slots
● Improve assembly jigs
Moisture and chemicals degrade core insulation.
Prevent with:
● UV-resistant coatings
● Environmental seals
● Periodic inspection
Sector | Stator Core Role |
EVs | Directly influences range and power |
Wind Turbines | Improves conversion efficiency |
Medical Robotics | Enables safe, stable movements |
Smart Appliances | Reduces noise and saves energy |
BLDC stator cores are central to these breakthroughs.
They power:
● Washing machines and refrigerators
● CNC machines, HVAC units
● Hybrid cars and e-bikes
● MRI systems and surgical bots
● Choose material based on application—Si-steel for cost, amorphous alloy for low loss
● Optimize lamination thickness (typically 0.2–0.5 mm)
● Use FEA (Finite Element Analysis) to map flux flow
● Validate performance with loss measurement and heat testing
Lamination and core design shape motor efficiency and strength.Better magnetic performance means lower energy loss and longer motor life.Design your stator core around your application. Every project has unique needs—customization matters.
A: Typically 0.2–0.5 mm. Thinner laminations reduce eddy current losses and improve efficiency.
A: Rarely. Solid cores have higher losses and poor heat handling; laminations are better for performance.
A: Skewed or evenly spaced slots reduce torque ripple and cogging, improving smoothness.
A: With quality materials and cooling, stator cores can last 10–20 years in industrial use.
A: Yes. Coatings prevent corrosion and enhance insulation, even in controlled environments.
